Insert

The module generates an Insert from Select statement based on the SQL query entered by the developer and executes the effective statement. Column mapping between the SQL query and the target table is done by name.

Name	Meaning
Module	Insert from select
Module Class	DsModTemplateSQL
Type	Java
Purpose	Append data to a target table based on a SQL query
Transformation Code	SQL query
Sources	Source tables in a database
Targets	Target table in the same database

Description

The following example shows how to build an Insert-Select statement with the help of the module. First, the SQL query used:

SELECT c_custkey AS key
     , c_name AS name
  FROM staging.customer

If the target schema is "demo" and the target table is "d_customer", the module generates the following effective SQL:

INSERT INTO demo.d_customer (
       key
     , name
     )
SELECT key
     , name
  FROM (
SELECT c_custkey AS key
     , c_name AS name
  FROM staging.customer
       ) src

As can be seen in the example, the column names of the target table must be specified as aliases when the source columns have different names. In the example, the target table "d_customer" has the columns "key" and "name". This applies especially when using literals or functions to generate column values, as in this example:

SELECT c_custkey AS key
     , c_name AS name
     , 'de' AS country
     , CURRENT_DATE() AS createdate
 FROM staging.customer

Data Sources

The sources of the module are tables that are read via the query defined by the datasqill developer. For these tables, the datasqill runtime user must have read rights. All source tables used in the SQL query must be connected to the module input in the datasqill GUI in the graphical data model.

Data Target

The target of the module is a single table. For this, the datasqill runtime user must have write rights. The target table must be connected to the module output in the datasqill GUI in the graphical data model.

Attributes

Name	Type	Meaning
Truncate Before	Boolean	The module deletes the target table before writing if this attribute is set to 'Y'. Deletion is attempted with the help of a stored procedure that must be named TRUNC_TABLE. If the stored procedure is not present, the SQL command DELETE is used.

Examples

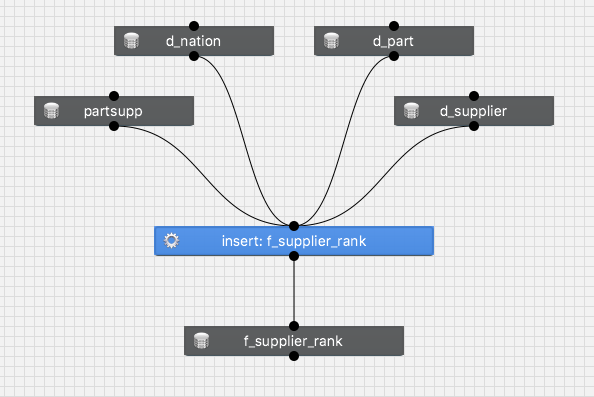

A more complex example could look like this. With the query

SELECT nation_key, part_key, supplier_key, ps_supplycost AS supplycost
     , ps_availqty AS availqty, CASE WHEN MIN(ps_supplycost) OVER (PARTITION BY region_key, part_key) = ps_supplycost THEN 'Y' ELSE 'N' END is_min_supply_cost
FROM demo.d_supplier, staging.partsupp, demo.d_nation, demo.d_part
WHERE ps_partkey = part_key
AND ps_suppkey = supplier_key
AND supplier_nation_key = nation_key

data from the tables demo.d_supplier, staging.partsupp, demo.d_nation and demo.d_part are joined and read.

insert_select

The module generates the following effective SQL statement:

INSERT into demo.f_supplier_rank (
       nation_key
     , part_key
     , supplier_key
     , supplycost
     , availqty
     , is_min_supply_cost
     )
SELECT nation_key
     , part_key
     , supplier_key
     , supplycost
     , availqty
     , is_min_supply_cost
  FROM (
SELECT nation_key, part_key, supplier_key, ps_supplycost AS supplycost
     , ps_availqty AS availqty, CASE WHEN MIN(ps_supplycost) OVER (PARTITION BY region_key, part_key) = ps_supplycost THEN 'Y' ELSE 'N' END is_min_supply_cost
FROM demo.d_supplier, staging.partsupp, demo.d_nation, demo.d_part
WHERE ps_partkey = part_key
AND ps_suppkey = supplier_key
AND supplier_nation_key = nation_key
       ) src

As can be seen, the original SQL query is included exactly and in the same format in the generated one.

Variations

When installing the module, additional attributes can be configured

Insert with Loop

The module can be extended so that the "Loop Query" attribute is activated (see configuring module attributes in the appendix):

Name	Type	Meaning
Loop Query	SQL	Loop query to use the results in the main query.

Then in addition to "Truncate Before" you have another attribute in which you can enter a query. When a loop query is captured, the module executes the main query for each record found. The column results can be used as variables.

Since the main query is executed per result row of the loop query, the result set of the loop query should be kept small. Otherwise you lose the performance of set operations and execution behaves procedurally.

The loop query can also be used very effectively as an IF query. E.g.:

SELECT DISTINCT 1
  FROM <source-table>
 WHERE <last-change-date> >= <today>-7

You get one row if something has changed in the last 7 days, otherwise none. Thus the main query is executed once or not at all.

In the main query you can use the column names of the loop query as variables. Note that the variables are each inserted as text (string).

Here is an example for monthly processing of data from the last 6 months with Oracle SQL.

Loop Query:

SELECT DISTINCT TO_CHAR(TRUNC(day, 'MM'), 'DD.MM.YYYY')  monat
  FROM <source-table>
 WHERE day >= ADD_MONTHS(TRUNC(SYSDATE, 'MM'), -5)

and the main query for it:

SELECT day, col1, col2, ... , coln
  FROM <source-table>
 WHERE TRUNC(day, 'MM') = TO_DATE('${monat}', 'DD.MM.YYYY')

datasqill replaces the variable ${monat} in the main query with the value of the monat column from the loop query for each loop iteration. Since the generated column value is transferred as text, a data type conversion must be performed (as in this example).

Technical Columns

You can define technical columns that allow you to see afterwards when which rows were inserted or modified:

Name	Column Definition	Meaning	Value
ins_date	ta_inserted_ts	Inserted at	Filled with the current timestamp (current_date) when inserting
ins_by	ta_inserted_by	Inserted by	Filled with the current modifier (current_by) when inserting
upd_date	ta_modified_ts	Modified at	Filled with the current timestamp (current_date) when inserting
upd_by	ta_modified_by	Modified by	Filled with the current modifier (current_by) when inserting
del_date	ta_deletion_ts	Deleted at	Filled with NULL when inserting
del_by	ta_deleted_by	Deleted by	Filled with NULL when inserting
del_ind	ta_is_deleted	Deletion indicator	Filled with 'N' when inserting
current_date	${get_current_datetime()}	This value defines the current timestamp	In delivered state the current timestamp in date-time (without milliseconds)
current_by	${request_id}	This value defines the current modifier	In delivered state the Request ID of the datasqill action execution

The column names used (under Column Definition) can be changed so that e.g. ta_inserted_ts is no longer called but insert_date. See also configuring module attributes in the appendix.

If the target table contains some or several of these technical columns, they are filled according to the table above. If you change the target table "demo.d_customer" in the very first example and add the technical columns ta_inserted_ts, ta_inserted_by, ta_modified_ts and ta_modified_by, the following is generated for Postgres:

INSERT INTO demo.d_customer (
       key
     , name
     , ta_modified_by
     , ta_modified_ts
     , ta_inserted_by
     , ta_inserted_ts
     )
SELECT key
     , name
     , 2423589
     , DATE_TRUNC('second', CURRENT_TIMESTAMP)
     , 2423589
     , DATE_TRUNC('second', CURRENT_TIMESTAMP)
  FROM (
SELECT c_custkey AS key
     , c_name AS name
  FROM staging.customer
       ) src

For Oracle the result would be:

INSERT INTO demo.d_customer (
       key
     , name
     , ta_modified_by
     , ta_modified_ts
     , ta_inserted_by
     , ta_inserted_ts
     )
SELECT key
     , name
     , 2423589
     , SYSDATE
     , 2423589
     , SYSDATE
  FROM (
SELECT c_custkey AS key
     , c_name AS name
  FROM staging.customer
       ) src
